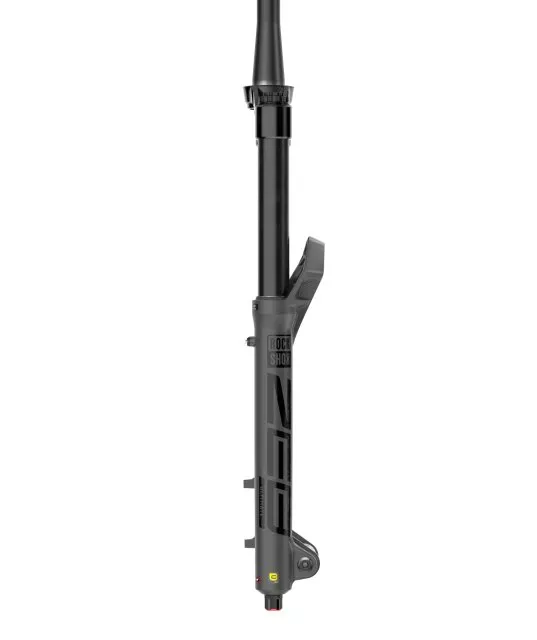

Rockshox Zeb Ultimate 29″ 2023

Long on travel, short on excuses, ZEB Ultimate is a whole new breed of fork, designed to challenge the limits and take on the worlds toughest enduro tracks. Going Ultimate has its advantages and features a stiff 38mm chassis designed with the new Charger 3 RC2 with vibration-killing ButterCup technology. Our highest performing, athlete-proven technologies matched with premium style plays. This is ZEB.

FEATURES

• 38mm chassis for increased stiffness and rider confidence
• NEW ButterCups block 20% of high frequency trail chatter. Limiting these vibrations massively reduces hand and arm fatigue leaving you feeling fresh with more control.
• NEW Charger 3 features a completely new Internal Floating Piston (IFP) design with better fidelity, performance and truly independent adjustments without any cross talk. Featuring High Speed Compression, Low Speed Compression, and a revamped Low Speed Rebound, every click is meaningful and exact. This dead silent design allows the rider to truly tune to perfection with every click
• NEW DebonAir+ is built to strike the perfect balance of what riders really want: butter-like small bump feel, increased air volume to add support throughout the travel and higher overall ride height for more confidence when things get steep.
• NEW Ultimate Bushing Package maximizes the forks bushing overlap, reducing friction and creating the smoothest ride possible
• NEW Pressure Relief Valves eliminate unwanted air pressure build up in the lower leg caused by variations in altitude or temperature. With the press of a button or two, Pressure Relief Valves restore premium fork feel.
• NEW Maxima Plush Dynamic Suspension Lube reduces friction and enhances fork performance ride after ride
• NEW Bolt-in torque cap adapters now included for the use with standard hub end caps
• Lightweight machined and anodized crown for premium looks and durability
• Signature Series graphics package
• RockShox premium short fender compatibility
• Ultra-low friction SKF wiper seals provide long lasting fork performance and improve overall suspension feel
• Maxima Plush damping fluid reduces friction and silences damper noise

SPECIFICATIONSModel designator (SF): UltimateWheel size: 29″Damper Type: Charger 3 RC2 W/ButterCupFork offset: 44mm (29″)Maxle included: Maxle StealthE-Bike Approved: E-bike ApprovedSteerer: 1.5″ TaperedAxle: 15x110mm BOOSTAxle to Crown (mm): 606Brake type (FD): DiscCrown Material: Forged, hollow aluminumUpper crown type: n/aLower leg type: Pressure Relief ValveUpper Tube Finish: Fast BlackUpper tube type: 38mm aluminumDamper adjust: CrownDamping adjustments: Extl begin stroke rebnd, low speed comp, high speed compVolume reducer: 0/4 TokensSpring: DebonAir W/ButterCupSpring rate: n/aMax Tire Diameter (mm): 770Max Tire Width (mm): 81Maximum Rotor Size: 220mmMinimum Rotor Size: 200mmFender Compatibility: Short, 3 point mountCrown OD (mm): 59
