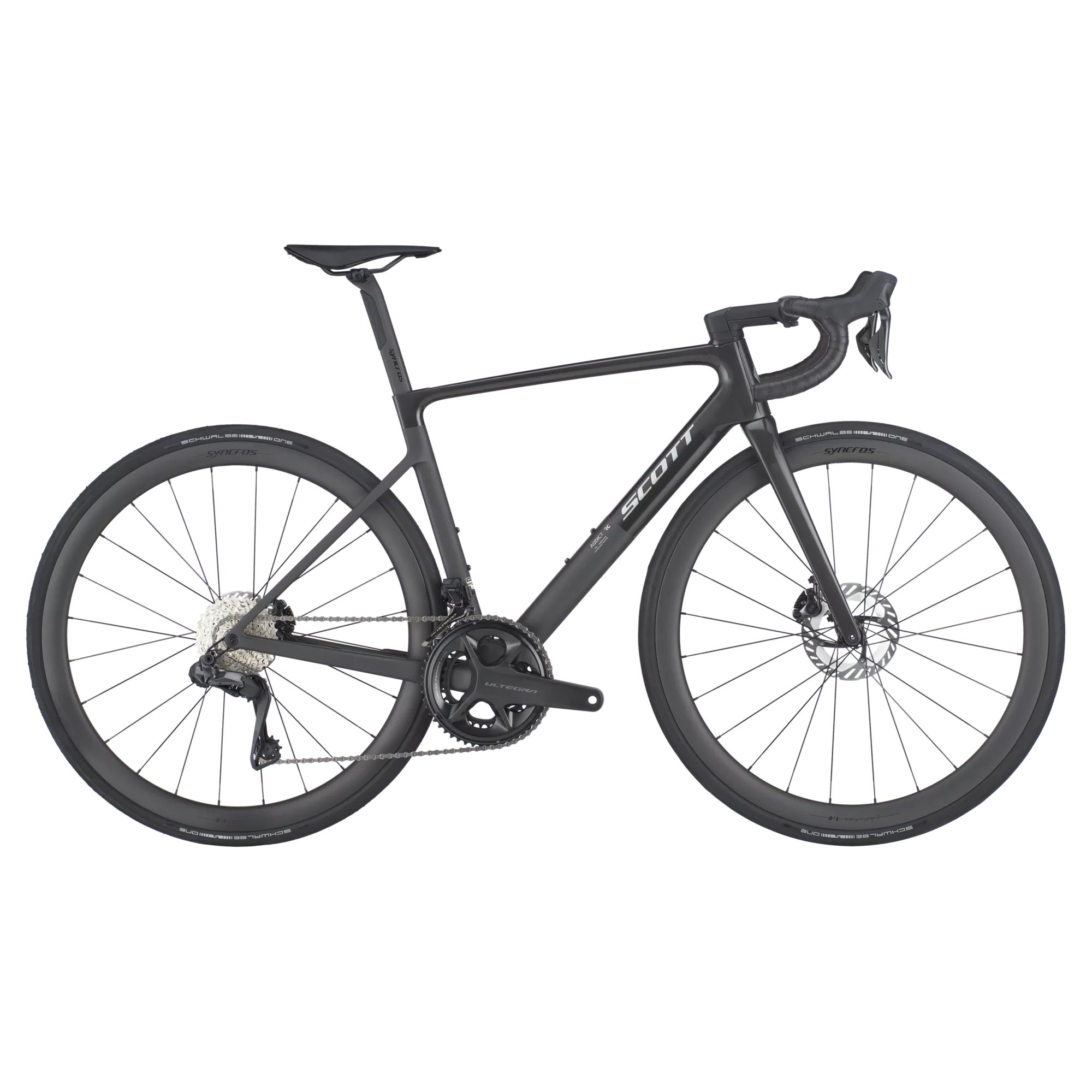

Engineered to defy gravity and elevate your performance, the Addict RC is our lightest production race bike ever. Whether you’re attacking steep climbs or sprinting for the finish line, every aspect of this bike was meticulously crafted with one thing in mindleaving everyone else in the dust.
Specfications
| Frame | Addict RC HMXRoad Race geometry, Replaceable Derailleur HangerInternal cable routing |
|---|---|
| Fork | Addict RC HMX Flatmount Disc27.2mm Eccentric Carbon steerer |
| Headset | Acros AIF-1317 |
| Handlebars | Syncros HB-R100-CF |
| Stem | Syncros ST-R100-AL |
| Wheels | Syncros Capital 1.0 4024 Front, 24 RearSyncros SL Axle |
| Tyres | Schwalbe ONE TLE Race-Guard Fold, 700x30C |
| Shifters | Shimano Ultegra Di2 ST-R8170Electronic Shift System |
| Rear Derailleur | Shimano Ultegra Di2 RD-R8150 |
| Front Derailleur | Shimano Ultegra Di2 FD-R8150 |
| Crankset | Shimano Ultegra FC-R8100Hollowtech II 52×36 |
| Cassette | Shimano Ultegra CS-R8101-1211-34 |
| Chain | Shimano CN-M8100-12 |
| Bottom Bracket | Shimano SM-BB71-41B |
| Brakes | Shimano BR-R8170 |
| Rotors | Shimano RT-CL800 rotor 160/F and 140/R |
| Seatpost | Syncros SP-R101-CF |
| Saddle | Syncros Belcarra Regular 2.0 |
| Extras | Syncros iS Drop Bar Tool 2 |
| Weight | 7.3 |
Geometry
Bikes –
| XXS | XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|---|
| Stack | 501.3 | 512.5 | 525.5 | 543.3 | 564.5 | 584.3 | 604.2 |
| Reach | 379.4 | 386.3 | 391.6 | 395.2 | 402.6 | 406.1 | 411.3 |
| Headtube Angle | 71.3 | 71.8 | 72.3 | 72.8 | 73.4 | 73.6 | 73.8 |
| Headtube Length | 90 | 100 | 113 | 130 | 150 | 170 | 190 |
| Seattube Angle | 74.5 | 74.5 | 74 | 73.6 | 73.3 | 72.8 | 72.5 |
| Seattube Length | 422.5 | 442.5 | 462.1 | 482.0 | 502.2 | 522.3 | 542.4 |
| Toptube (Effective) | 519 | 528 | 542 | 555 | 572 | 586 | 602 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 977 | 983.2 | 988.8 | 990.8 | 999 | 1006.4 | 1015.4 |
| BB Height | 270.5 | 270.5 | 271.5 | 272.5 | 272.5 | 272.5 | 272.5 |
| BB Drop | -74 | -74 | -73 | -72 | -72 | -72 | -72 |
| Standover | 725 | 740 | 758 | 778 | 799 | 820 | 840 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| Cockpit Reach | 530 | 547 | 563 | 577 | 585 | 599 | 604 |
| Cockpit Min Stack | 562 | 573 | 586 | 604 | 623 | 643 | 662 |
| Stem Length | 80 | 90 | 100 | 110 | 110 | 120 | 120 |
| Handlebar Width | 360 | 380 | 380 | 400 | 400 | 400 | 420 |
| Crank Length | 165 | 165 | 170 | 172.5 | 172.5 | 175 | 175 |
